붕소 특수 가스 합성을 위한 저실리콘 고순도 B4C 과립

High-Purity Low-Silicon Boron Carbide (B₄C) Granules: Silicon Control & Raw-Material Selection for Electronic-Grade Boron-Based Gas Synthesis

BoronHub Technical Note | CAS No. 12069-32-8 | Standard 2-5 mm Granules

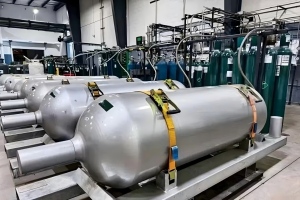

In the semiconductor, photovoltaic, display-panel and fine-chemical-synthesis industries, electronic specialty gases impose extremely stringent purity requirements on feedstock materials. When Boron Carbide (B₄C) is utilised as a solid boron source to synthesise boron-containing gases such as boron trifluoride (BF₃), boron trichloride (BCl₃) and diborane (B₂H₆), impurity control — especially silicon (Si) content — directly governs reaction conversion efficiency, crude-gas purity, distillation load, as well as the application reliability of end-products.

Referencing BoronHub’s high-purity boron-carbide product documentation, high-purity B₄C is commonly identified under CAS No. 12069-32-8. Its specification framework is built around total boron, total carbon, free B₂O₃ and metallic / non-metallic impurities. For gas-synthesis feedstock, silicon grading must be precisely matched to the purity tier of downstream gases.

1. Why is silicon (Si) content tightly controlled for gas-synthesis feedstock?

During high-emperature halogenation or reduction reactions, trace residual silicon impurities inside boron-carbide feedstock may transform into volatile silicon halides including SiCl4 and SiF4. Once these silicon-bearing species enter the crude-gas stream, they trigger multiple engineering challenges:

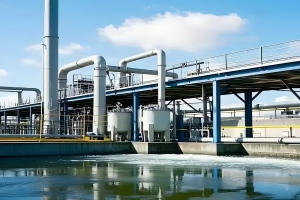

Higher distillation-separation difficulty: Certain silicon halides exhibit boiling points close to target boron-based gases. Separation of SiF₄ from BF₃ is particularly difficult under fluorine-system conditions, driving up energy consumption for low-temperature distillation and condensation purification.



Risk of end-product contamination: Residual silicon entering downstream CVD, diffusion or doping processes can alter thin-film stoichiometry, introduce particulate defects, and thereby degrade device electrical performance and production yield.



Equipment & catalyst hazards: Volatile silicon compounds may deposit on cold zones of pipelines, valves or reactors, causing blockages, abrasion or catalyst deactivation, which disrupt continuous stable operation.

Accordingly, boron-carbide feedstock for gas synthesis cannot focus merely on total-boron and total-carbon metrics. The upper limit for silicon content should align with target gasproduct purity, reactor configuration and purification capacity, rather than chasing a simplistic “high-purity” label.

2. Technical Specifications of BoronHub Low-Silicon Boron-Carbide Granules

BoronHub supplies high-purity low-silicon boron-carbide granules with standard particle size of 2-5 mm, suitable for fixed-bed, packed-bed and selected fluidised reaction systems. While maintaining high total-boron, high total-carbon and low free-B₂O₃ performance, our products feature well-defined silicon-content grades.

Note: For industrial-grade gas synthesis or cost-sensitive projects, BoronHub can also deliver custom economy grades with Si < 0.90%. All minimum / maximum values serve as factory acceptance test criteria.

3. Beyond Silicon Grading: Synergistic Importance of Total B, Total C and Free B₂O₃

Silicon control is the core requirement for gas-synthesis feedstock, yet it is not the only parameter. BoronHub’s specification system simultaneously addresses the following indicators:

Total B + C ≥98.50%: Guarantees effective boron-carbon content and minimises interference from inert impurities and oxygen on reaction efficiency.

Total B ≥78.00%: Secures boron supply per unit feedstock, which improves gas-synthesis conversion rates.

Total C ≥18.00%: Preserves B₄C stoichiometric balance for more predictable high-temperature reaction behaviour.

Free B₂O₃ ≤0.30%: Mitigates ingress of oxygen and moisture, reducing side-reactions and oxygen-bearing impurities in downstream gases.

Together with silicon-content grades, these parameters establish a complete quality-control framework for gas-synthesis raw materials. For gas products including BF₃, BCl₃ and B₂H₆, customers can select the optimal low-silicon boron-carbide grade based on reaction pathways, distillation capacity and end-point purity requirements.

4. Engineering Advantages of 25 mm Granules

Our standard 2-5 mm granules are not simply screened material; the particle morphology is optimised for gas-solid reaction engineering requirements:

Minimise bed maldistribution: Uniform granules stabilise gas distribution and mitigate channeling and localised overheating.



Preserve excellent gas permeability: Deliver stable pressure-drop and reaction contact area within fixed-bed or packed-bed reactors.

Reduce dust & entrainment: Compared with fine powders, granular material generates less dust during loading and operation, safeguarding gas purity and simplifying equipment maintenance.



Facilitate moisture-proof handling: When paired with hermetic sealing packaging, it lowers risks of B₂O₃ moisture-absorption and water contamination.

Beyond the standard 2-5 mm grade, BoronHub can custom-engineer alternative particle-size ranges and particle-size distributions to match customer reactor geometry, sieve gradation and loading procedures.

5. Quality Assurance, Testing & Supply Capacity

For electronic-specialty-gas synthesis clients, BoronHub delivers consistent batch-to-batch performance and scalable supply capacity:

Each batch is tested against factory acceptance criteria; COA (Certificate of Analysis) can be provided alongside shipments.

Traceelement testing such as ICP-MS is available upon request for target impurities including Fe, Al and Cr.

Products are packed in moisture-proof hermetic packaging to minimise moisture exposure during transit and storage.

Routine supply can align with steady monthly procurement schedules; packaging and commercial terms can be negotiated separately.

Custom sieve-grading, sample testing and technical-document support are available.

6. Commercial Enquiries & Customisation

Product pricing is directly correlated to silicon-content grades. Tighter silicon specifications ranging from Si < 0.90 %, < 0.50 %, < 0.40 %, < 0.30 %, < 0.20 % down to < 0.10 % demand stricter raw-material screening, process control and batch-testing protocols.

Please contact the BoronHub technical-commercial team to obtain quotations for specific silicon grades, customisation & shipping proposals, COA templates or sieve-gradation datasheets.

BoronHub — High-Purity Low-Silicon BoronCarbide Granules. Controlled, stable and customisable feedstock solutions for electronic-grade boron-based gas synthesis.
